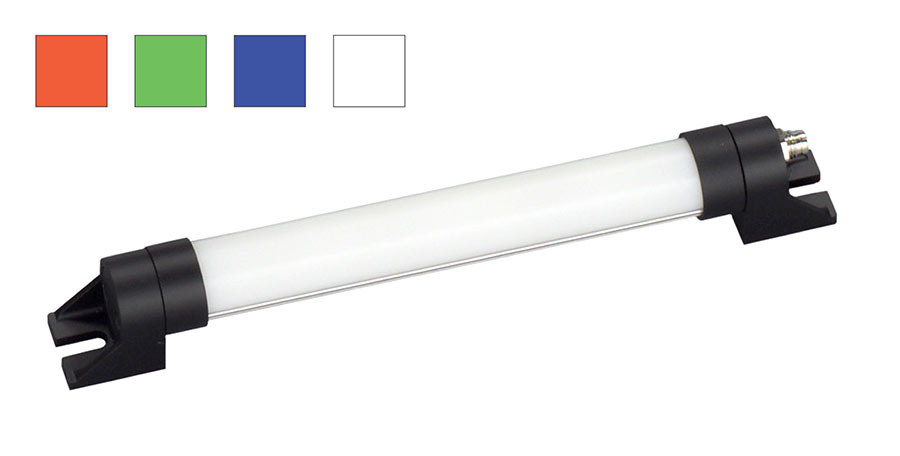

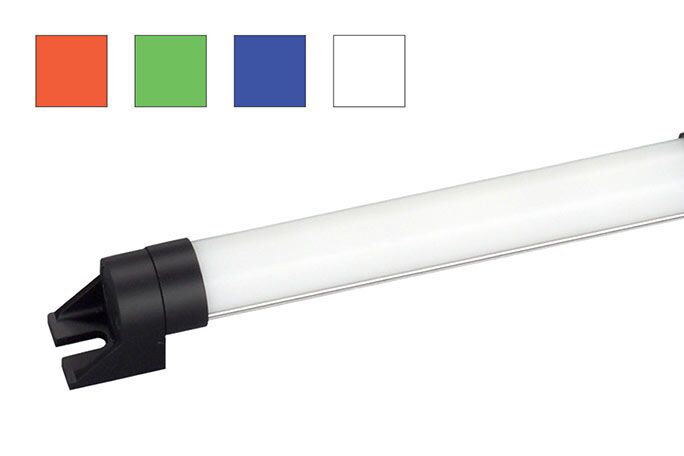

MLe Compact SLL 140 RGBW machine luminaire

The MLe Compact SLL RGBW is a variant of the MLe Compact SLL. In addition to illumination, a range of colours can be used to differentiate between machine statuses and production steps. The LED luminaire for machines and workstations is available in five different lengths and with three different covers. The MLe Compact SLL RGBW is protected against harmful quantities of dust, has a fully touch-safe enclosure and is protected against splashwater on all sides (protection class IP54).

MLe Compact SLL 140 RGBW - Features

  Table scrollable on small display!

Power consumption Approx. 4 watts for white colour
Connected load 24V DC (-10% / +15%)
Connection type 3 m connection cable or 30 cm cable with M12 plug connector
Housing material Anodised aluminium
Protection class IP 54
Protection class III
Lamp cover diffuse PS, semi-diffuse PS, clear ABS
Max. ambient temperature 50° C

MLe Compact SL 140 RGBW - Order variants

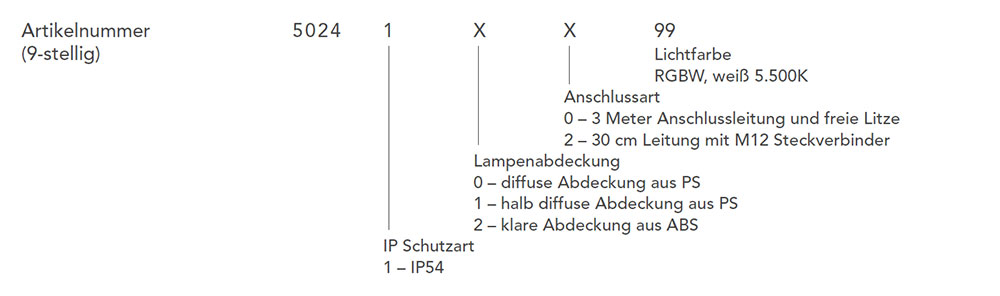

MLe Compact SLL 140 RGBW - Order variants
